Technicial Specifications:

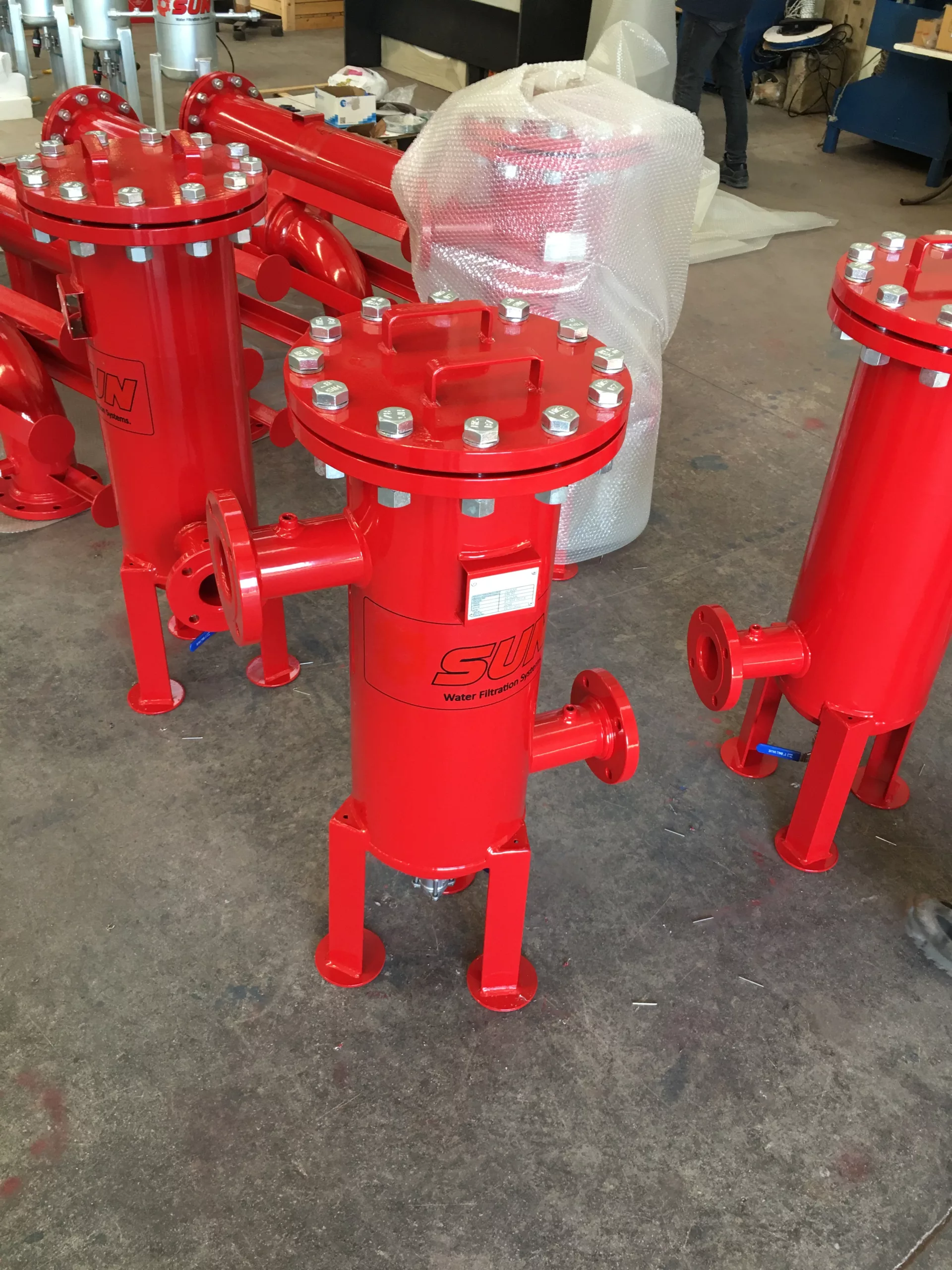

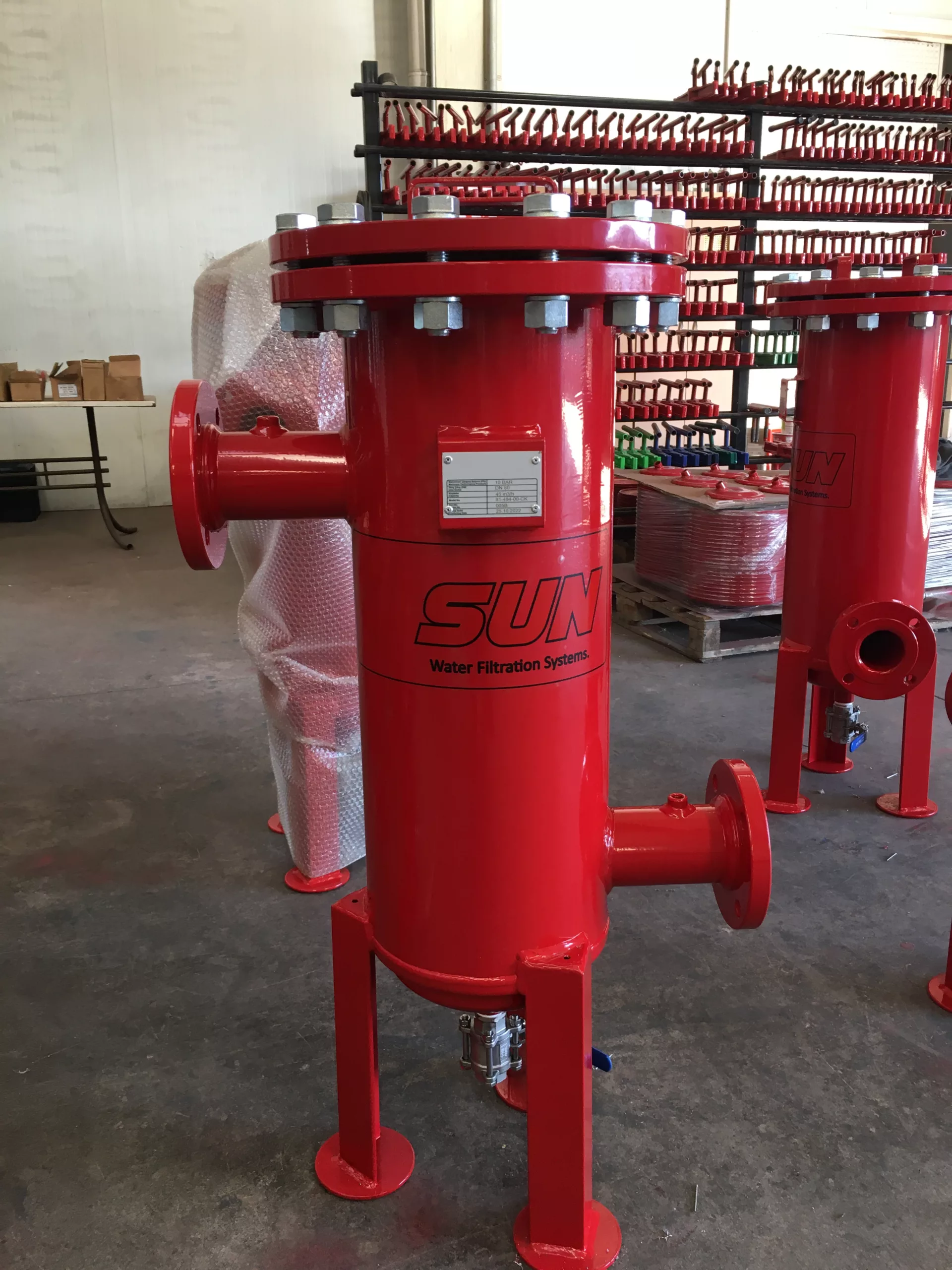

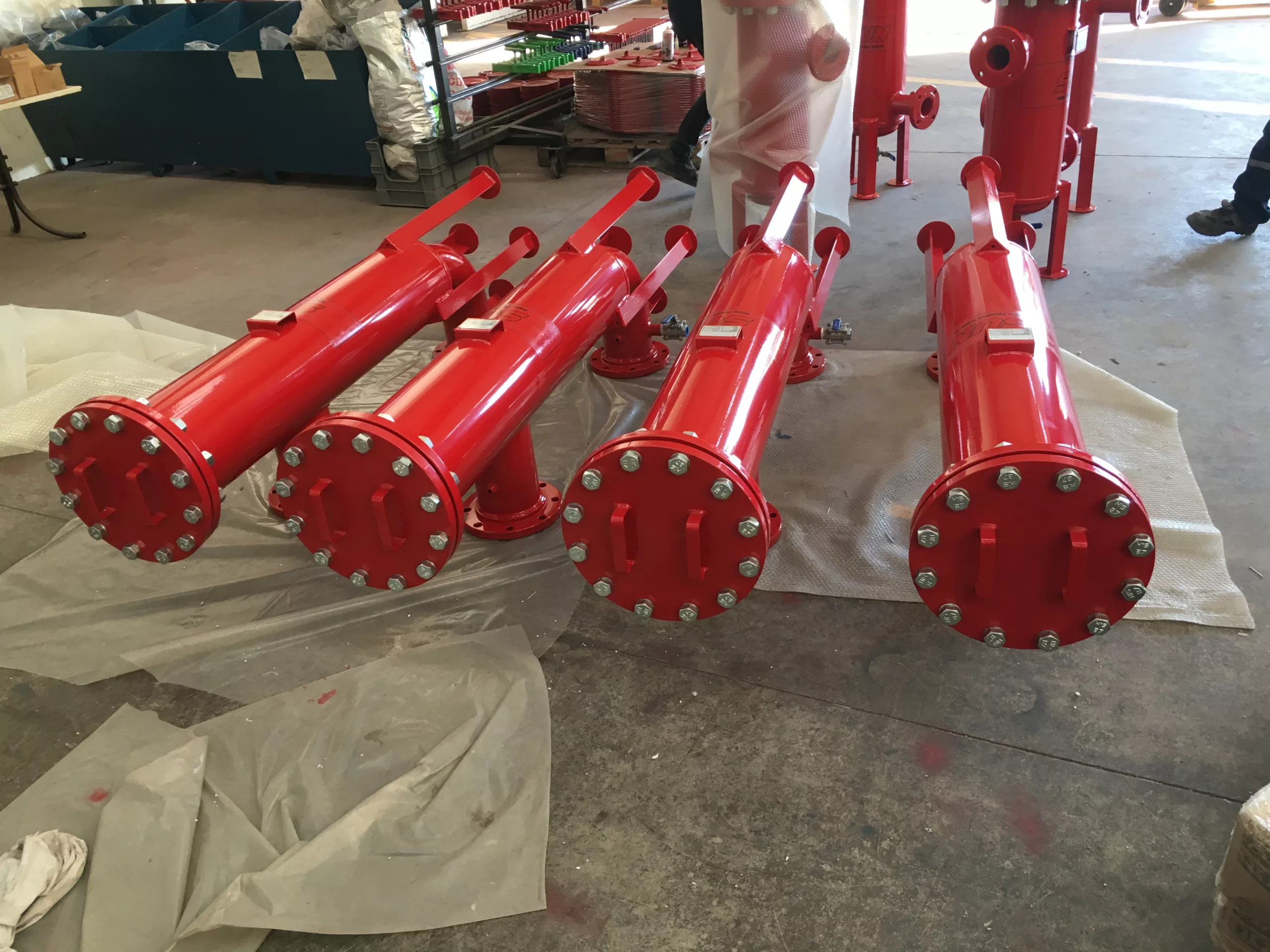

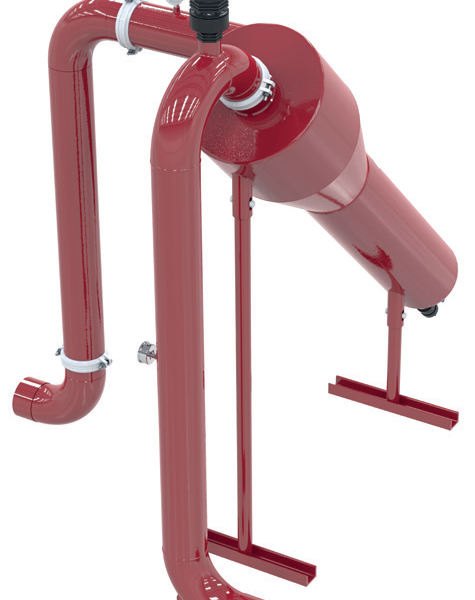

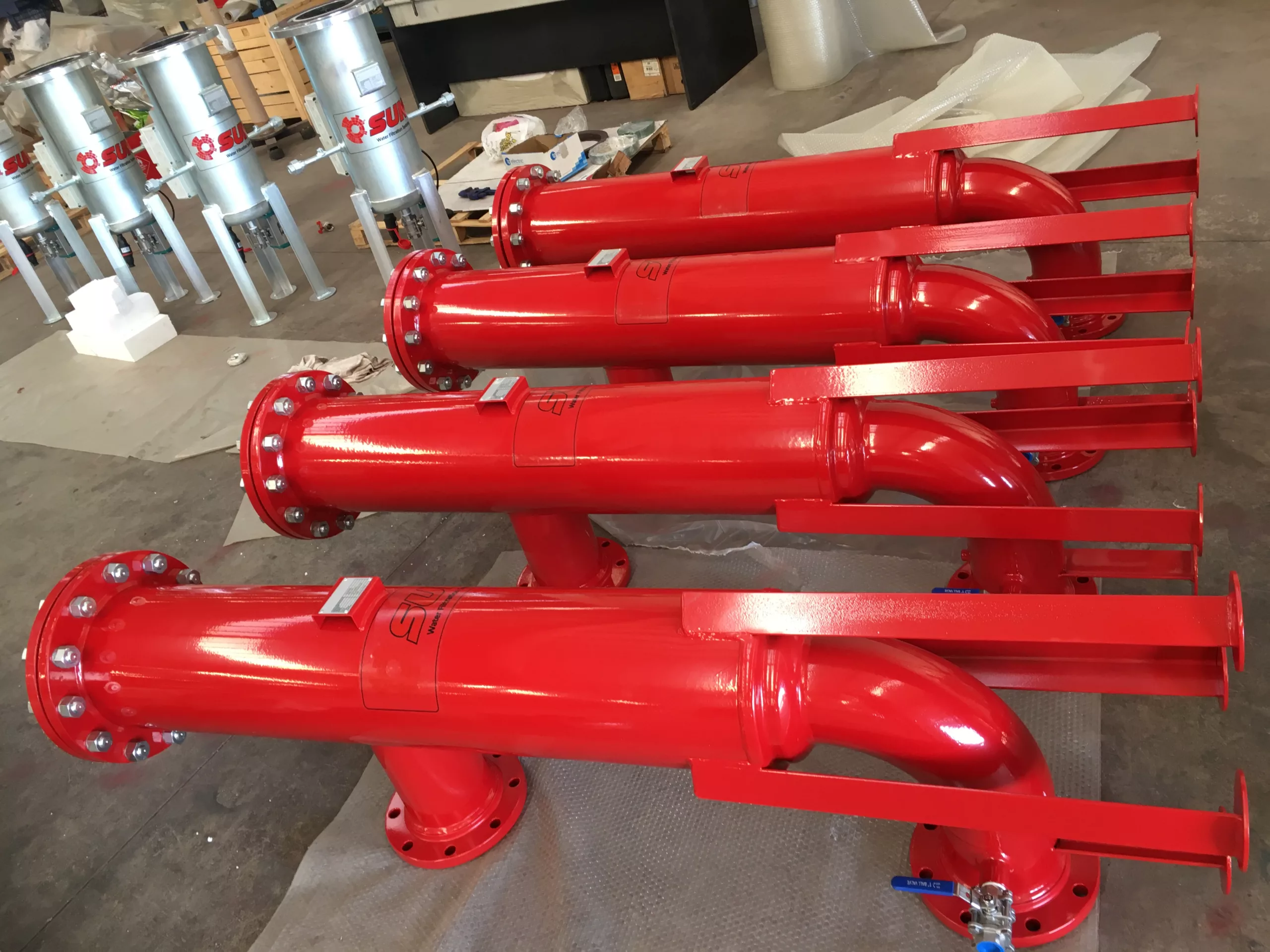

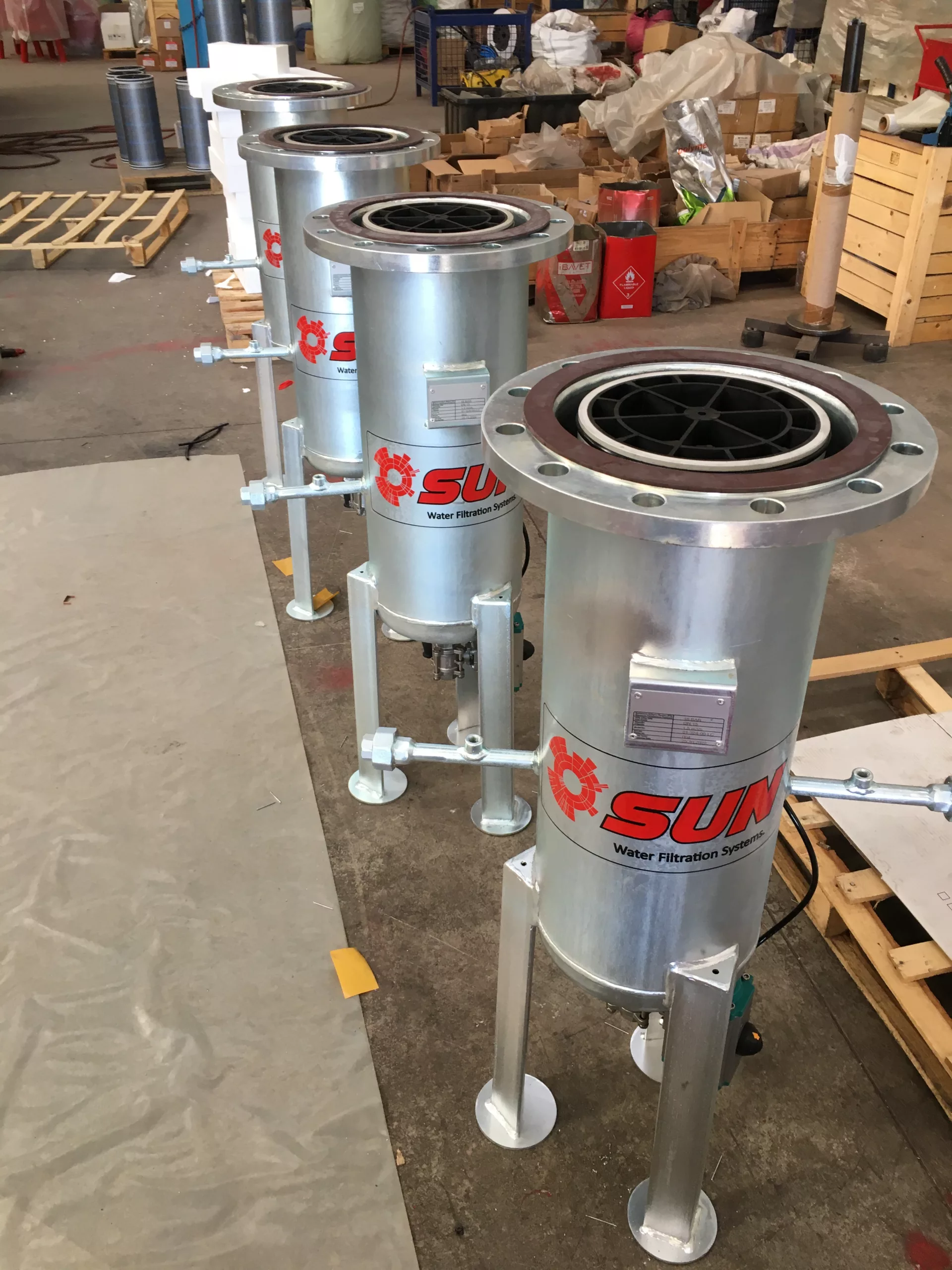

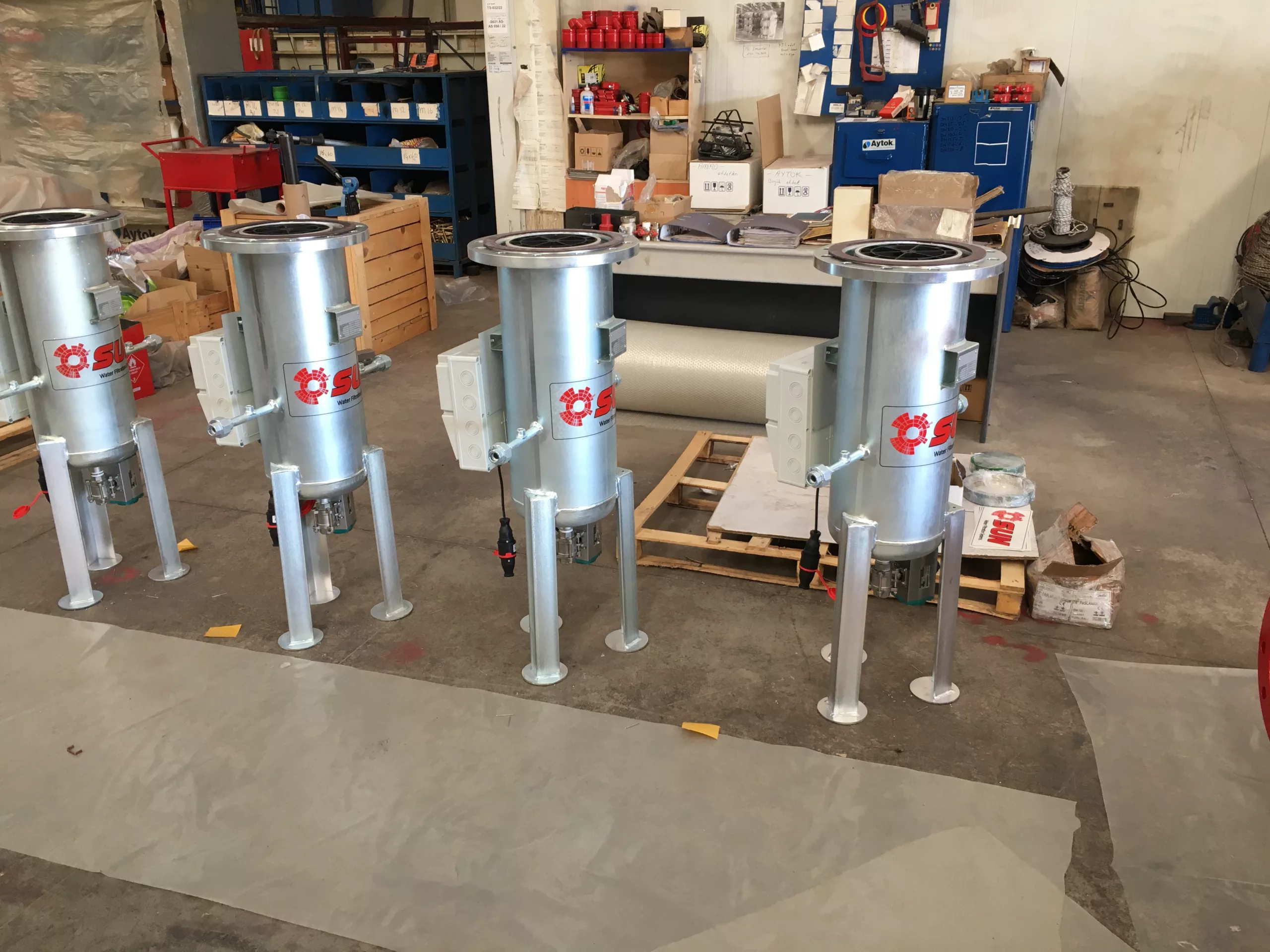

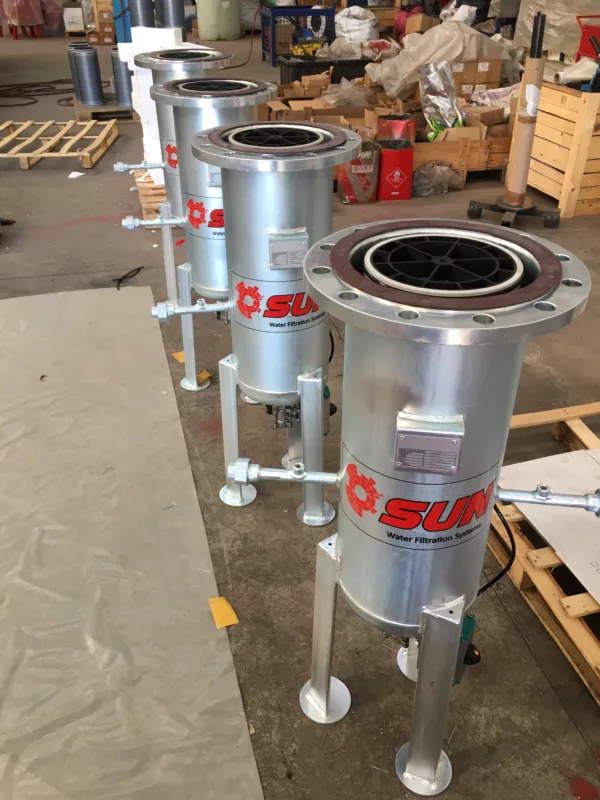

Basket filters are a piping element used to filter particles and all other foreign sediments in the fluid and to send the fluid to the system with the desired sensitivity. The fluid, which fills the basket inside the body from the inlet direction, has a “cylindrical inner filter element inserted into the cylindrical inner structure body” and a comfortable filtration volume in which the fluid will flow to the outlet by filtering.

The net permeability area of the filter is 400%, 600%, 800% or more depending on the pipe section and has the sizes preferred by the user and has the desired ranges of 5 microns and 10mm. They are the most economical filters in terms of energy consumption, where the pressure loss in the pump circuits is kept at a minimum level.

Filter Cleaning: The top cover is disassembled and the inner filter (Basket) is taken out and cleaned.

Material Feature:

S195T Steel
ST37-2 Steel

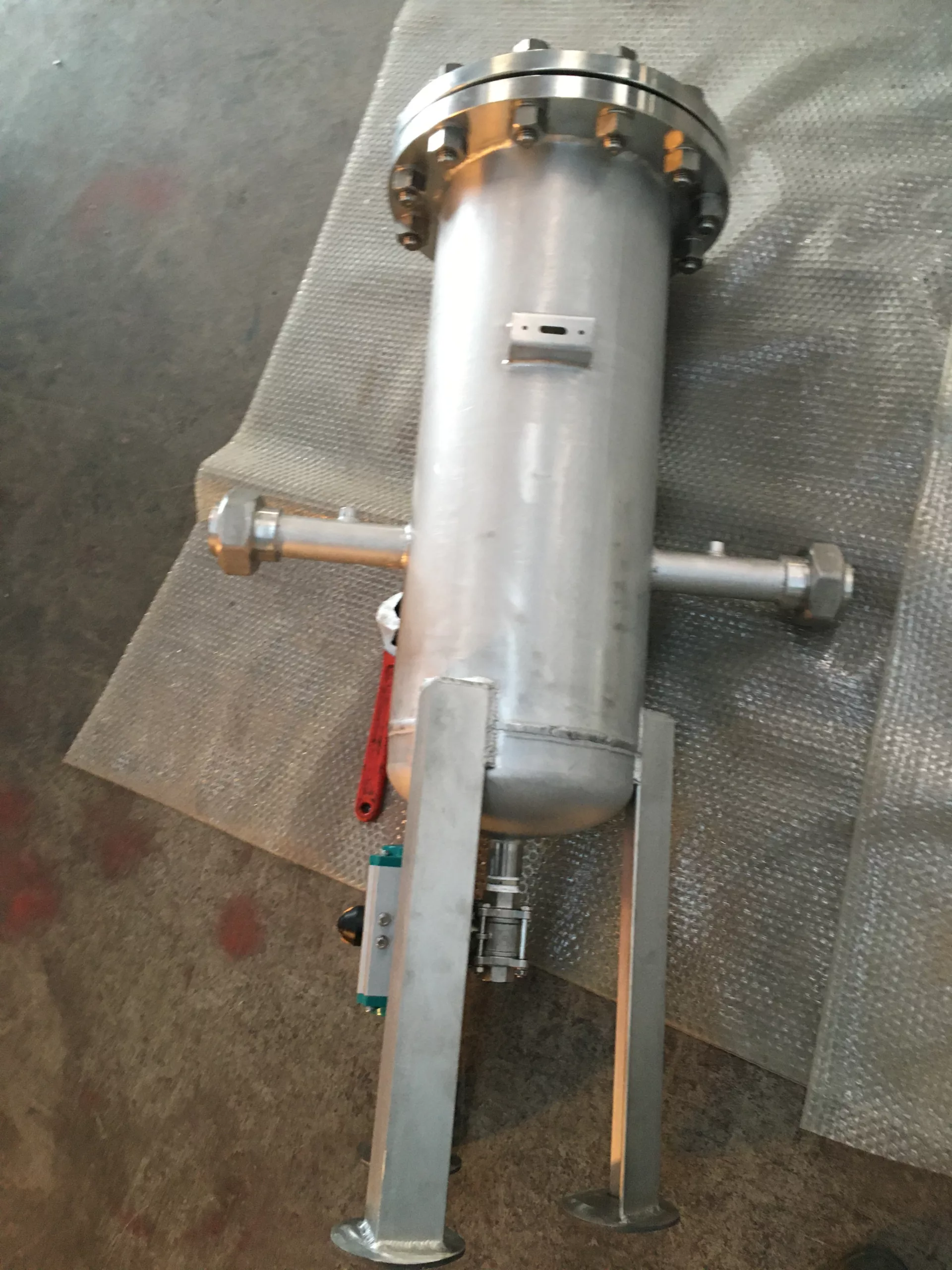

SS304L Stainless Steel
SS316L Stainless Steel

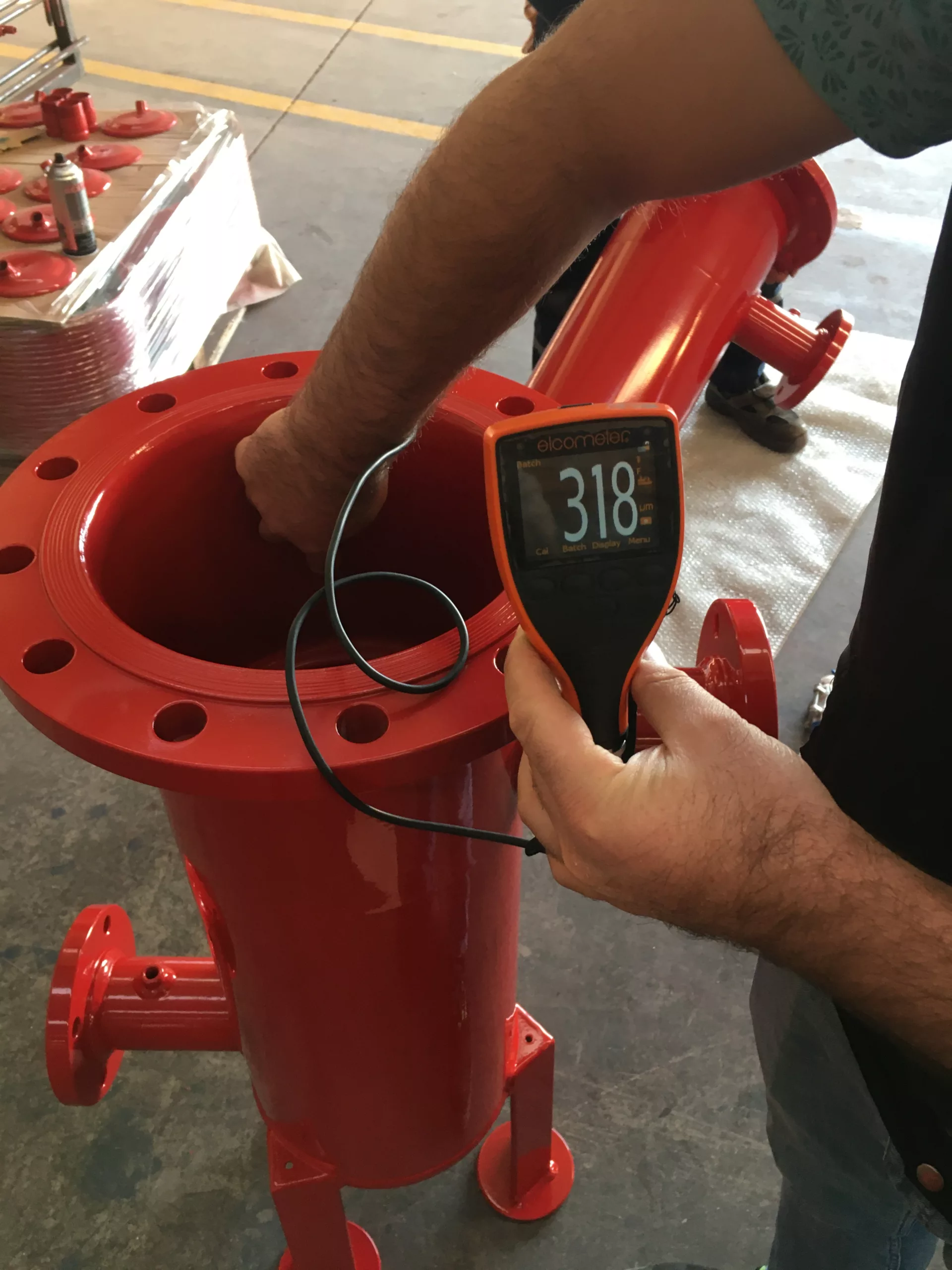

Carbon steel body coating material epoxy polyester C5-M Electrostatic powder paint coating.

Pressure Class: ASME: Class 150,
DIN : PN 10, 16, 25
